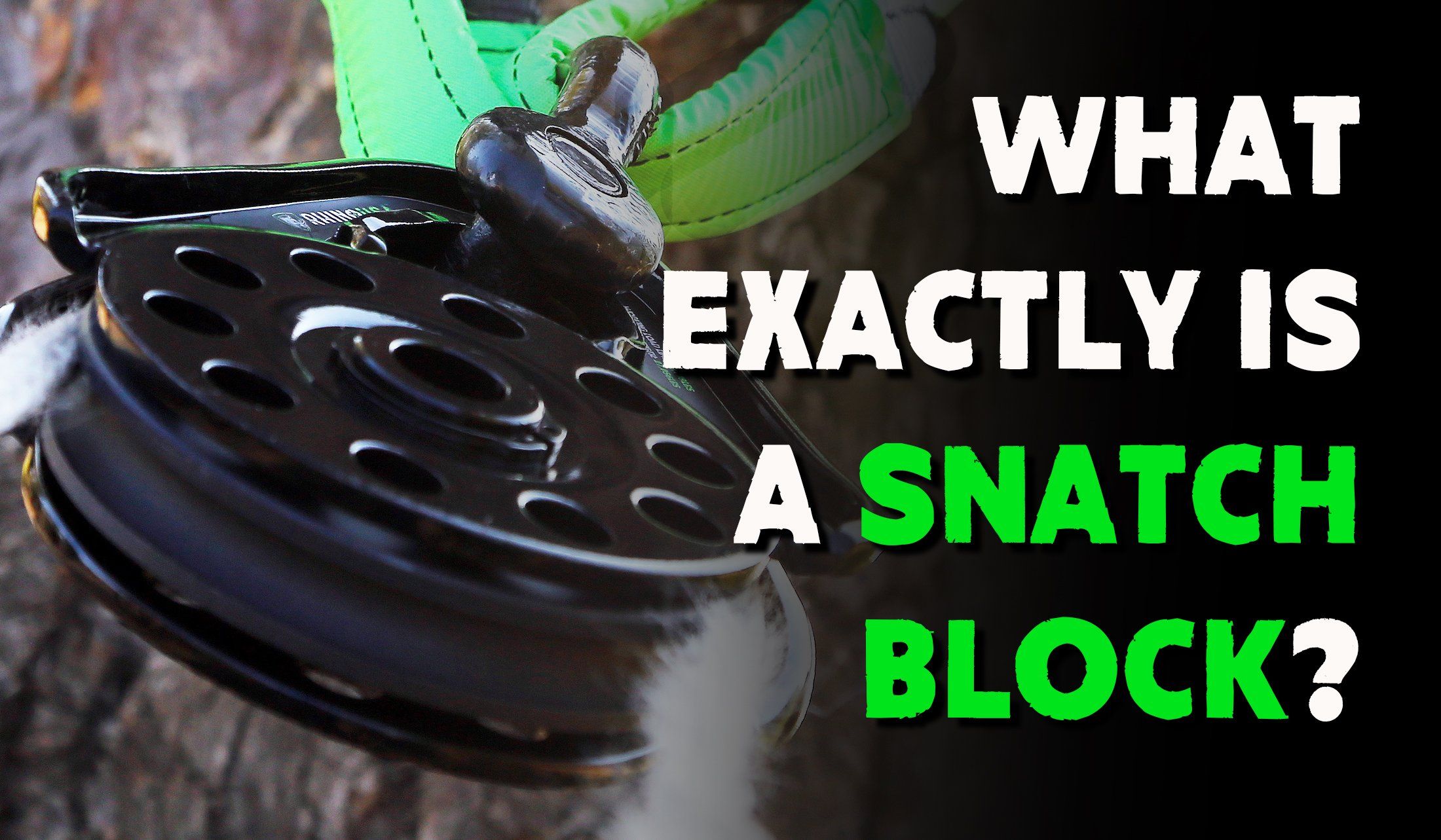

Off-Roading 101: What Exactly is a Snatch Block?

At Rhino, we always carry a snatch block in our recovery kit. Why? Because they not only improve the working load limit of your winch – they almost double it. At its core, a snatch block is a heavy-duty pulley designed to change the direction of a pull and increase pulling power. If you often go off-roading with friends, family, or large groups, then you have likely heard of the tool in passing.

Maybe it was a close friend, or maybe it was that guy who cannot stop talking about how “kickass” his recovery kit is. Regardless, they are smart, and you should listen to their advice.

Without a snatch block, the chances of you getting your vehicle unstuck on your own are practically zero. The ability of a snatch block to recover a stuck vehicle comes from the mechanical advantage it provides, making it much easier to free a vehicle from mud, sand, or other obstacles. You can try digging yourself out, but that only works if you have a high-quality shovel on hand, a pickaxe, and a whole lot of time, patience, and of course – dedication.

I do not mean to knock shovels, as they absolutely help in specific situations.

However, sometimes you just need a bit of motion, and for that you are going to need a winch combined with a heavy-duty snatch block and a reliable tree saver recovery strap. A snatch block is a type of heavy-duty pulley enclosed in a metal casing that opens on one side, making it a versatile tool for demanding recovery operations.

So, if your vehicle is currently equipped with a winch, you may want to get your wallet out.

What is a Recovery Snatch Block?

A recovery snatch block ultimately increases the total working load limit of your winch. And, unlike a winch, you will not be going too far out of pocket to acquire one – think around $50

A $50 investment may seem “too good to be true” when it comes to winch equipment, especially one that promises to greatly improve your winches working load limit, but we are dead serious. Snatch blocks hugely improve a winch’s working load limit.

Before we dive into the “how”, it is important that you understand what a snatch block is. Many different industries use these for various purposes, but the thing to know is that they are essential for lifting and moving heavy objects from point A to point B. You will find them being utilized in construction zones, warehouses, and practically any field that requires heavy lifting. Manufacturers offer different models of snatch blocks tailored to specific applications.

Snatch blocks can be quickly integrated into a rope system at any point along the line. The ability to insert rope without unreeving saves time and simplifies setup.

Below is a great example of the snatch block you will need for vehicle recovery.

The key difference between these snatch blocks and one used for recovering a vehicle, is the design. A recovery snatch block is designed to fit a winch cable and accommodate a loop-end tree saver recovery strap. In comparison to a standard pulley block, a snatch block features a quick-release mechanism and a covered casing, which enhances durability and safety during heavy-duty recovery operations. Whereas the snatch block more often used outside of vehicle recovery has an entirely different design that is most often accompanied by a hook.

So, how does a Recovery Snatch Block provide mechanical advantage?

A snatch block is essentially a pulley encased in a metal shell that is built to assist a winch with heavy loads. Its core function is to provide mechanical advantage and act as a force multiplier in rigging and recovery operations. Typically, they are manufactured with high-grade materials, and can easily handle thousands of pounds at a time. The big idea behind a snatch block is to redistribute the weight of a heavy load, allowing the winch to work freely with ease and increasing the pulling power. Using a snatch block allows you to double the pulling force exerted by the winch in a self-recovery situation where a tree is used as an anchor. Snatch blocks distribute the load across more line segments, reducing strain on winches and extending the life of ropes.

The pulling power of a winch is greatly decreased when the spool is full of cable. Let this cable out, and the winch will perform more effectively with a higher pull ratio. A snatch block allows you to let out more winch, therefore increasing the overall pull ratio of your winch. This gain in efficiency is achieved by redirecting the winch line through the snatch block, which provides mechanical advantage without increasing the actual power of the winch itself.

MUST READ: Instantly Increase the Pull Power of Your Winch

To set up a snatch block, you simply swing open the side plate by removing or loosening the pin, allowing for easy midline installation of the rope or cable—saving time compared to traditional pulleys that require threading from the end. The snatch block can then be quickly attached to a solid anchor point, such as a tree, recovery point, or truck, using a shackle for security. This setup is common in rigging, towing, and off-road recovery scenarios, where redirecting the line is necessary to recover a stuck vehicle or maneuver heavy loads safely.

Now, combine the two factors. You have achieved a better weight distribution and less winch line in the spool. The amount of pulling power your winch is capable will greatly increase.

Before each use, operators should conduct a pre-use inspection by checking the Working Load Limit (WLL), side plates, pins, and bearings to prevent failure. Always double-check that the snatch block is completely closed and secured before applying force. Failing to check for sheave wear or using bent components undermines safety. The smooth, grooved sheave in a snatch block reduces friction and prevents sharp bends that can damage wire or synthetic ropes.

These are especially handy when recovering a vehicle. Different vehicles have a different weight, and just because you were able to winch yourself out, does not mean that you can safely winch another vehicle. By combining your winch with a recovery snatch block, you likely will not have to worry about the other vehicles weight. As it will add enough juice to your recovery setup to handle heavier loads – unless we are talking buses or freight trucks.

Here are 5 easy steps on how to use a snatch block:

Step 1: Pre-Use Inspection
Before using a snatch block, conduct a thorough pre-use inspection. Check the Working Load Limit (WLL) to ensure it matches your application. Inspect the side plates, pins, and bearings for any signs of wear, damage, or defects to prevent failure.

Step 2: Open the Snatch Block
Most snatch blocks feature a swing-open design, allowing you to easily insert the rope or cable midline without threading from the end. To open the snatch block, remove or loosen the pin and swing open the side plate.

Step 3: Insert the Rope or Cable
Place the rope or cable into the pulley groove, ensuring it is properly seated.

Step 4: Attach to Anchor Point
Attach the snatch block to a secure recovery point, such as a rated shackle on a vehicle or a solid anchor. Using a shackle ensures a safe and stable connection for winching, lifting, or off-road recovery operations.

Step 5: Close and Secure the Snatch Block
Swing the side plate back into position and reinsert or tighten the pin. Always double-check that the snatch block is completely closed and secured before applying any force.

Step 6: Begin Operation
Once everything is secure, proceed with your lifting, pulling, or recovery operation as needed.

Featured Product: Rhino USA Recovery Snatch Block

Yoke Alloy Snatch Blocks are available in sizes ranging from 3 inches to 10 inches, making them suitable for a variety of rigging needs. The Skookum Snatch Block with Alloy Sheave is a lightweight option, ideal for applications where weight is a concern.

When selecting a snatch block, it is important to choose the correct sheave diameter for your application. The proper sheave diameter helps extend rope life and protects your equipment during lifting operations.

Types of Rope Used with Snatch Blocks

When it comes to pairing your snatch blocks with the right rope, the choice often comes down to wire rope or synthetic rope. Each type has its own strengths, and picking the right one can make a big difference in both safety and performance during vehicle recovery.

Wire rope is the traditional choice for many off-roaders and is known for its durability and resistance to abrasion. It’s a solid option when you’re dealing with heavy loads and rough terrain, as the steel construction can handle a lot of weight and is less likely to fray when dragged over rocks or sharp edges. However, wire rope is heavier, can develop sharp burrs over time, and requires gloves for safe handling. It’s a reliable match for heavy-duty snatch blocks and is commonly used when maximum strength is needed.

On the other hand, synthetic rope has become increasingly popular thanks to its lightweight design and ease of use. Synthetic rope is much lighter than wire rope, making it easier to carry and manage, especially when you’re out on the trail. It’s also safer in the event of a break, as it doesn’t store as much kinetic energy and is less likely to snap back dangerously. While synthetic rope is strong and flexible, it can be more susceptible to abrasion and UV damage, so it’s important to check compatibility with your snatch block and ensure the side plates and sheave are designed for synthetic lines.

No matter which rope you choose, always make sure your snatch block is rated for the type and diameter of rope you’re using, and that it matches the weight and load requirements of your recovery job. The right combination of snatch blocks and rope will give you the confidence and pulling force you need to tackle even the toughest recoveries.

Safety Guidelines, Working Load Limit, and Warnings

Winching vehicles can be dangerous. For your security, always inspect your snatch block before use—check for sheave wear and avoid using any bent components, as these can undermine safety. Also, ensure the rope you use matches the sheave groove; using rope that is too large or too small can accelerate wear and compromise safety. So, before winching your own vehicle or another, be sure to read our guide on properly using a winch for vehicle recovery. We almost always advise that you have a winch damper on hand for winching vehicles, as this prevents the winch cable from snapping backwards if it breaks.

Decide if a snatch block is right for your recovery needs based on your specific situation and travel plans.

Visit our online store today to learn more about the Rhino USA 13.5 Ton Break Strength Recovery Snatch Block.

FAQ's

When should I use a recovery snatch block?

You should use a snatch block in off-roading scenarios when you encounter the following situations:

1. Change of Direction: When you need to change the direction of your winch cable or recovery strap. Snatch blocks are ideal for redirecting the pull, allowing you to approach an anchor point from a different angle. They are also commonly used in marine applications to change the direction of a pull in operations involving ships, boats, or other maritime activities.

2. Difficult Angles: When your vehicle is stuck at an awkward angle or in a position where a straight-line pull is impractical. A snatch block can help you apply force more effectively and from a better angle.

3. Reduced Winch Load: To reduce the strain on your winch and vehicle during a recovery operation. By using a snatch block, you can share the load between the winch and the anchor point, preventing excessive stress on your equipment. Note that while snatch blocks increase pulling power, they also reduce the speed of line recovery, so you should balance the need for force with the desired speed.

4. Precise Pulling: When you need to perform a recovery operation with a more controlled and precise pulling angle. Snatch blocks enable you to achieve the desired direction and tension for safe and effective recoveries.

Snatch blocks can be used with both wire rope and synthetic rope, but always verify compatibility with your specific equipment.

In summary, snatch blocks are valuable tools in off-roading for changing the direction of force, navigating challenging terrains, reducing load stress, and achieving controlled recoveries. Off-roaders around the world use snatch blocks to expand their recovery capabilities and travel with greater confidence. We highly recommend having a recovery snatch block in your arsenal if you are planning on off-roading, especially in more treacherous areas.

Where to buy a snatch block?

We're not biased... but we highly recommend buying your recovery snatch block from Rhino USA, where our snatch blocks are made from high-strength cutting edge aerospace polymer pulley and 6mm powder coated drop forged steel. Rhino USA's recovery snatch block has a 9,000+ pound working load limit, and just like all of our products, it comes with a lifetime warranty!
